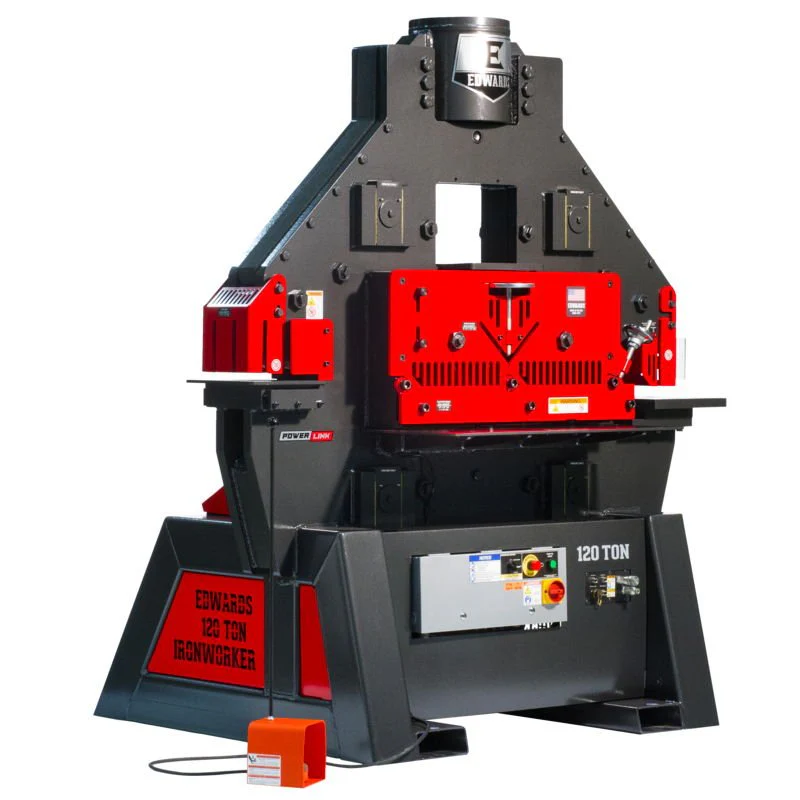

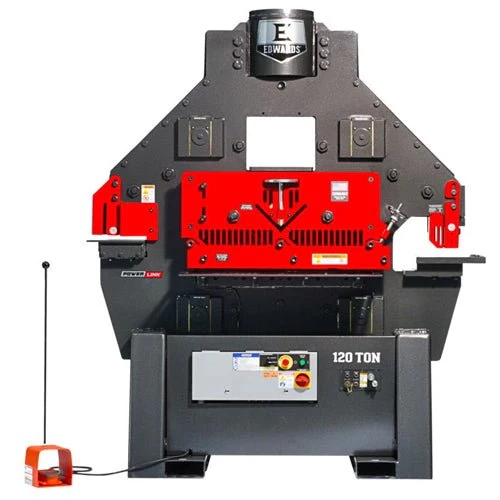

120 Ton Ironworker

The Powerhouse -  Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility.

• Five Available Workstations
• Universal Open Tooling Station
• 24" Flat Bar Shear
• Dedicated Coper Notcher
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.

PUNCH

• Rating 120 Tons

• Max. Capacity 1-1/2" Dia. in 1" A36

• (65,000 PSI Tensile)

• Stroke 2"

• Throat Depth 11"

• Open Height 9-1/8"

• Shut Height 7-1/8"

• Work Height 36-5/8"


FLAT BAR SHEAR

• Max. Capacity 1/2" x 24"

• 1" x 12"

• Max. Round 1-1/4"

• Max. Square 1-1/4"

• Work Height 33-1/4"


ANGLE SHEAR

• Max. Capacity 6" x 6" x 1/2"

• Work Height 52-1/2"


COPER NOTCHER

• Max. Capacity 3" x 6" x 1/2"

• Work Height 40"


OPEN CAVITY

• Height 9"

• Width 11-3/4"

• Work Height 51-3/4"


GENERAL SPECIFICATIONS

• Standard Motor 10 HP 3~ 208 V or 230 V

• 1770 RPM 26 A

• Optional Motors 10 HP 3~ 460 V

• 1770 RPM 12 A

•

• 10 HP 3~ 575 V

• 1770 RPM 10 A

•

• 10 HP 1~ 230 V

• 1740 RPM 40 A

• Hydraulic Pump 24 GPM

• Valve Pressure 3800 PSI

• Reservoir 17 Gallons

• Cylinder 2-3/4" Ram


DIMENSIONS

• Height 79 3/8"

• Width 60"

• Depth 60"

• Shipping Weight 5500 lb
