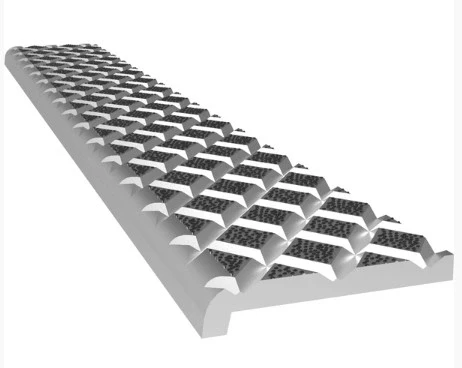

Economical and easy to install, Babcock-Davis Ribbed Bar Abrasive Nosing is designed for stairs and is perfect for indoor and outdoor poured concrete stair applications where extra safety is desired or required by code.

The ribbed abrasive grit can be customized for multi-color treads.

Features

Anti-Slip Safety
Continuous Color
Optional Vision Line
14 Color Options
Title 24 Compliant*

Specifications

Model	BSTSB
Channel	Extruded Aluminum
Application	Concrete Poured, Steel Pan, Terrazzo or Wood
Tread	Ribbed Bar Abrasive or EcoTread
Width	1-7/8", 3" or 4"
Mounting	Extruded Anchor or Drilled Holes
Nosing	Short, Short-Tipped, Long, or Angled
Compliance	California Title 24, Section 3306
Colors	Abrasive Grit: Black, Yellow, Photoluminescent, Gray, Brown, Burgundy, Green, Blue, Red or Buff (Orange) EcoTread: Black, Safety Yellow, Blue, Gray
Options	Vision Line, Abrasive Colors, Mitered Cuts, Painted Undersides, and Taped Tops
Warranty	1 Year

Order Guide

MODEL	WIDTH	TREAD	NOSING	INSTALL
BSTSB-C1.875E-ECO	1-7/8"	EcoTread	Short	Cast-In, Extruded Anchor
BSTSB-C1.875E	1-7/8"	Abrasive Grit	Short	Cast-In, Extruded Anchor
BSTSB-C1.875D-ECO	1-7/8"	EcoTread	Short	Drilled Hole, Mech. Fastened
BSTSB-C1.875D	1-7/8"	Abrasive Grit	Short	Drilled Hole, Mech. Fastened
BSTSB-P1.875E-ECO	1-7/8"	EcoTread	Short-Tipped	Cast-In, Extruded Anchor
BSTSB-P1.875E	1-7/8"	Abrasive Grit	Short-Tipped	Cast-In, Extruded Anchor
BSTSB-L1.875E-ECO	1-7/8"	EcoTread	Long	Cast-In, Extruded Anchor
BSTSB-L1.875E	1-7/8"	Abrasive Grit	Long	Cast-In, Extruded Anchor
BSTSB-L1.875D-ECO	1-7/8"	EcoTread	Long	Drilled Hole, Mech. Fastened
BSTSB-L1.875D	1-7/8"	Abrasive Grit	Long	Drilled Hole, Mech. Fastened
BSTSB-A1.875D-ECO	1-7/8"	EcoTread	Angled - Long	Drilled Hole, Mech. Fastened
BSTSB-A1.875D	1-7/8"	Abrasive Grit	Angled - Long	Drilled Hole, Mech. Fastened
BSTSB-C3E-ECO	3"	EcoTread	Short	Cast-In, Extruded Anchor
BSTSB-C3E	3"	Abrasive Grit	Short	Cast-In, Extruded Anchor
BSTSB-C3D-ECO	3"	EcoTread	Short	Drilled Hole, Mech. Fastened
BSTSB-C3D	3"	Abrasive Grit	Short	Drilled Hole, Mech. Fastened
BSTSB-P3E-ECO	3"	EcoTread	Short-Tipped	Cast-In, Extruded Anchor
BSTSB-P3E	3"	Abrasive Grit	Short-Tipped	Cast-In, Extruded Anchor
BSTSB-L3E-ECO	3"	EcoTread	Long	Cast-In, Extruded Anchor
BSTSB-L3E	3"	Abrasive Grit	Long	Cast-In, Extruded Anchor
BSTSB-L3D-ECO	3"	EcoTread	Long	Drilled Hole, Mech. Fastened
BSTSB-L3D	3"	Abrasive Grit	Long	Drilled Hole, Mech. Fastened
BSTSB-A3E-ECO	3"	EcoTread	Angled - Long	Cast-In, Extruded Anchor
BSTSB-A3E	3"	Abrasive Grit	Angled - Long	Cast-In, Extruded Anchor
BSTSB-A3D-ECO	3"	EcoTread	Angled - Long	Drilled Hole, Mech. Fastened
BSTSB-A3D	3"	Abrasive Grit	Angled - Long	Drilled Hole, Mech. Fastened
BSTSB-C4E-ECO	4"	EcoTread	Short	Cast-In, Extruded Anchor
BSTSB-C4E	4"	Abrasive Grit	Short	Cast-In, Extruded Anchor
BSTSB-C4D-ECO	4"	EcoTread	Short	Drilled Hole, Mech. Fastened
BSTSB-C4D	4"	Abrasive Grit	Short	Drilled Hole, Mech. Fastened
BSTSB-P4E-ECO	4"	EcoTread	Short-Tipped	Cast-In, Extruded Anchor
BSTSB-P4E	4"	Abrasive Grit	Short-Tipped	Cast-In, Extruded Anchor
